Aluminium foil container machine 04

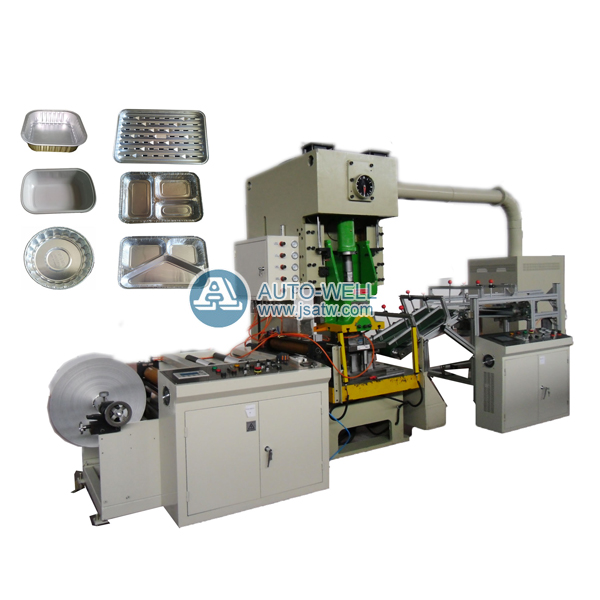

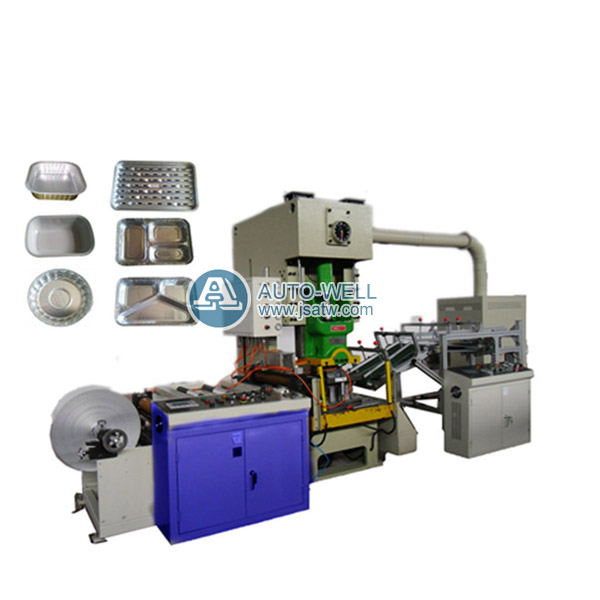

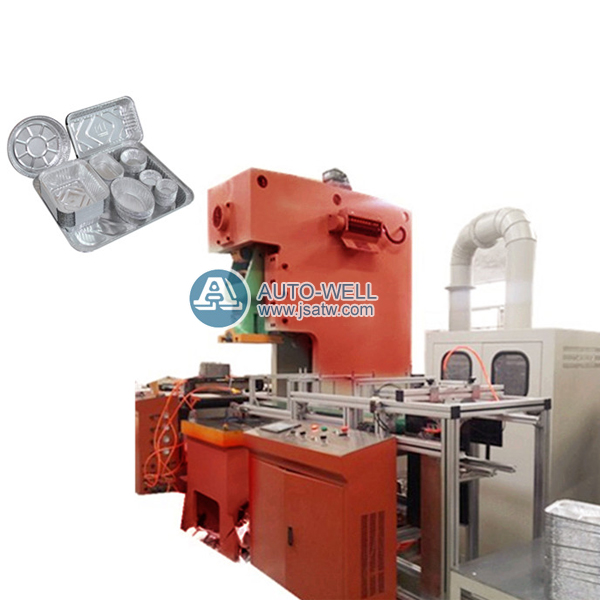

ATW-45T aluminum foil container machine
Components:
1. Auto Feeder (with an auto-lubricator)
2. Siemens Electrical control panel

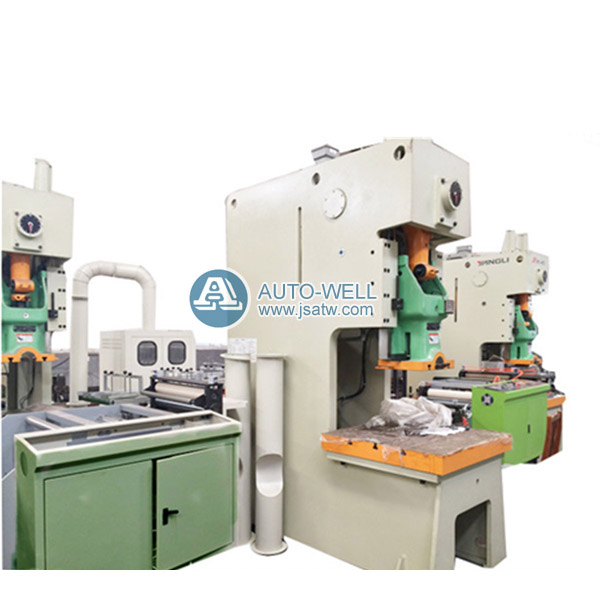

3. 45 ton Yangli brand pneumatic press
4. Mould
5. Collection desk
6.Aoto-conveyor (optional)
7. Auto-stacker (optional)
8. scrap collector (optional)
9. scrap baler (optional)
Specification :
1)Specification of Auto-Lubricator Feeder:
Max. Material Roll Dia.: 650mm
Max. Material Roll Width: 650mm
Feeding Speed: 10-30M/min
Feeding Length: 30-900mm
Feeding Tolerance: +/-0.3mm
Capacity: 1Kw
2)Specification of 45T Pneumatic Punch:
Pressure: 400KN
Hole Size of Collecting Table: 300*300mm
Production Output: 40-80times/min
Board Thickness of Collecting Table: 50mm
Max. Height of Mould: 290mm
Slide Board Size: 220*400mm
CHARACTER:
This machine widely used for manufacturing aluminum foil food container .
- Speed can be adjusted.
-Complete with PLC Control Panel Board
1)Specification of Auto-Lubricated Feeder:
Max. Material Roll Dia.: бщ650mm
Max. Material Roll Width: 650mm
Feeding Speed:10-30M/min
Feeding Length: 30-900mm
Feeding Tolerance: +/-0.3mm
Capacity: 1Kw
2)Specification of 45T Pneumatic Punch:
Pressure: 400KN
Hole Size of Collecting Table: 300*300mm
Production Output: 40-80times/min
Board Thickness of Collecting Table: 50mm
Max. Height of Mould: 290mm
Slide Board Size: 220*400mm
3)Aluminum foil container mould: it uses flexible pneumatic resilience device; long mold service life, stable and reliable quality, high precision, reasonable design and precision processing technology.
