Aluminum foil food container machine

-For the Aluminum container machine , we have different size :25T, 45T, 63T, 80T and 110T

Generally 45T press is most popular in market .





Components:

1. Auto Feeder (with an auto-lubricator)

2. Siemens Electrical control panel

3. 45 ton Yangli brand pneumatic press

4. Mould

5. Collection desk

6.Aoto-conveyor (optional)

7. Auto-stacker (optional)

8. scrap collector (optional)

9. scrap baler (optional)



Specification :
1)Specification of Auto-Lubricator Feeder:
Max. Material Roll Dia.: 650mm
Max. Material Roll Width: 650mm
Feeding Speed: 10-30M/min
Feeding Length: 30-900mm
Feeding Tolerance: +/-0.3mm
Capacity: 1Kw

2)Specification of 45T Pneumatic Punch:
Pressure: 400KN
Hole Size of Collecting Table: 300*300mm
Production Output: 40-80times/min
Board Thickness of Collecting Table: 50mm
Max. Height of Mould: 290mm
Slide Board Size: 220*400mm



-For the machine we have two type :

**Semi-automatic aluminum container machine

(including automatic feeder ,YANGLI Brand press , Siemens PLC ABB INVERTER, XILIN servo motor with collecting table)



**Full automatic aluminum container machine

(including automatic feeder ,YANGLI Brand press , Siemens PLC ABB INVERTER, XILIN servo motor , Scrap collector , Automatic Counter &Stacker)

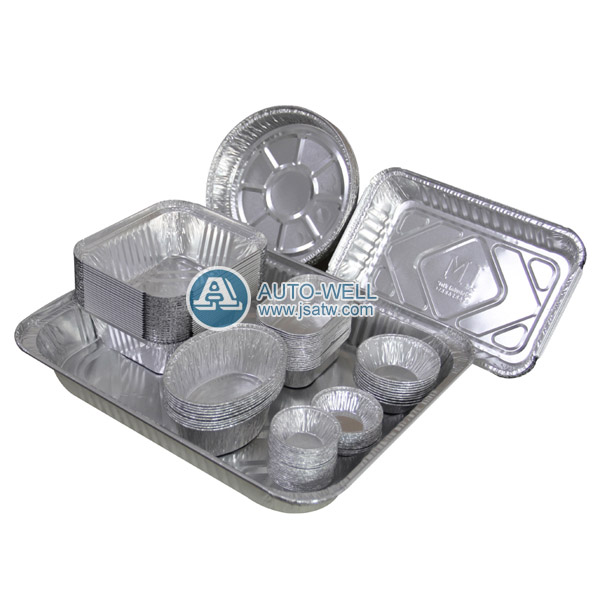

-For the mould , 2a, 60a , 240ml, 450ml, 750ml are the most popular size in market .these sizes can be made into two cavity mould , then working on the press .
