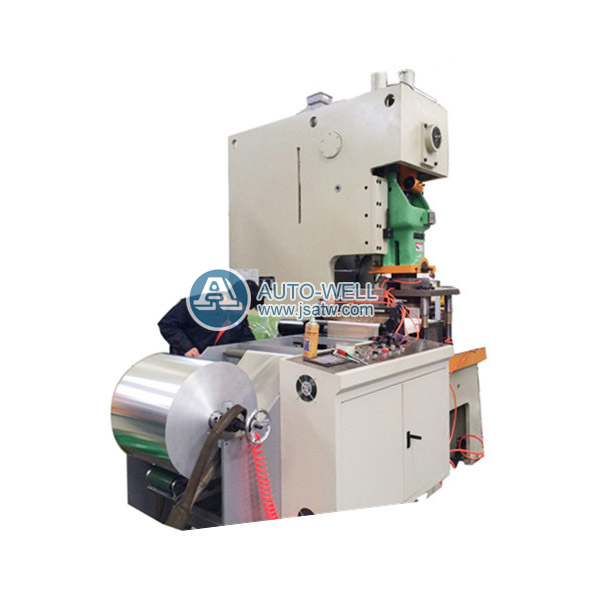

 Aluminum foil food container machine

-For the Aluminum container machine , we have different size :25T, 45T, 63T, 80T and 110T

Generally 45T press is most popular in market .

Components:

1. Auto Feeder (with an auto-lubricator)

2. Siemens Electrical control panel

3. 45 ton Yangli brand pneumatic press

4. Mould

5. Collection desk

6.Aoto-conveyor (optional)

7. Auto-stacker (optional)

8. scrap collector (optional)

9. scrap baler (optional)

Specification :
1)Specification of Auto-Lubricator Feeder:
Max. Material Roll Dia.: 650mm
Max. Material Roll Width: 650mm
Feeding Speed: 10-30M/min
Feeding Length: 30-900mm
Feeding Tolerance: +/-0.3mm
Capacity: 1Kw

2)Specification of 45T Pneumatic Punch:
Pressure: 400KN
Hole Size of Collecting Table: 300*300mm
Production Output: 40-80times/min
Board Thickness of Collecting Table: 50mm
Max. Height of Mould: 290mm
Slide Board Size: 220*400mm

-For the machine we have two type :

**Semi-automatic aluminum container machine

(including automatic feeder ,YANGLI Brand press , Siemens PLC ABB INVERTER, XILIN servo motor with collecting table)

**Full automatic aluminum container machine

(including automatic feeder ,YANGLI Brand press , Siemens PLC ABB INVERTER, XILIN servo motor , Scrap collector , Automatic Counter &Stacker)

-For the mould , 2a, 60a , 240ml, 450ml, 750ml are the most popular size in market .these sizes can be made into two cavity mould , then working on the press .

As following here is machine details :

Automatic Feeder(with lubricating system):

-Specification :

Max. Material Roll Dia.: 650mm

Max. Material Roll Width: 650mm

Feeding Speed:10-30M/min

Feeding Length: 30-900mm

Feeding Tolerance: +/-0.3mm

Capacity: 4Kw

Voltage: 380V/220V

Weight:1T

Dimension: 1200x1200x1100mm (L*W*H)

Length Controller:700x720x550mm (L*W*H)

Yangli Brand Press:

-Specification :

Pressure: 450KN

Hole Size of Collecting Table: 300*300mm

Production Output: 40-80times/min

Board Thickness of Collecting Table: 50mm

Max. Height of Mould: 290mm(excluded working plate 50mm)

Slide Board Size: 220*400mm

The Distance from Center of Slide Piece and Punch Unit: 340mm

The adjustment height of Installation of Mould: 60mm

Size of Screw Hole of Mould: 50*60mm

Size of Collecting Table: 660*1000 mm*50 mm

Dimension: 1500*1125*2315mm (L*W*H)

Motor Capacity:7KW

Weight:5000kg
