Semi-automatic aluminium foil rewinder

ATW-SD500 Semi-automatic aluminum foil rewinder

Semi-automatic aluminium foil rewinder

Specification:

Material thickness: 0.009-0.02mm

Maximum Unwinding Width: 500mm

Maximum Unwinding Diameter: 600mm

Rewinding Width: 100-500mm

Mother Core Diameter: 76mm/152mm (option)

Finished Product Core Diameter: 25mm/30mm/35mm (option)

Length of production: 30m-400m

Production Speed : 0-300m/min

Power of Motor: 2.2 kw

Machine Weight: 1200 kg

Machine Dimension (LxWxH): 1100x1350x1500mm

CHARACTER:
This machine widely used for manufacturing household aluminum foil roll.
- Speed can be adjusted.
-Complete with PLC Control Panel Board
Main technical parameters:

SPECIFICATION:

Material thickness  0.0085mm-0.025mm
Max. Unwinding Width  500mm
Max. Unwinding Diameter  600mm
Mother Core Diameter 76mm/152mm(ѡ)
Max. Slitting Width 500mm
Product Core Diameter 25mm/30mm/35mm(ѡ)
Producing Speed 4.5m/s
Length of product  50m-600m

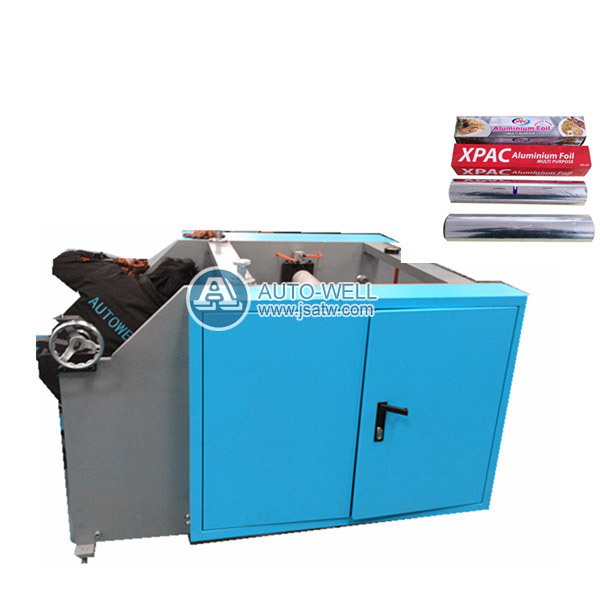

Semi-automatic aluminium foil rewinder 2

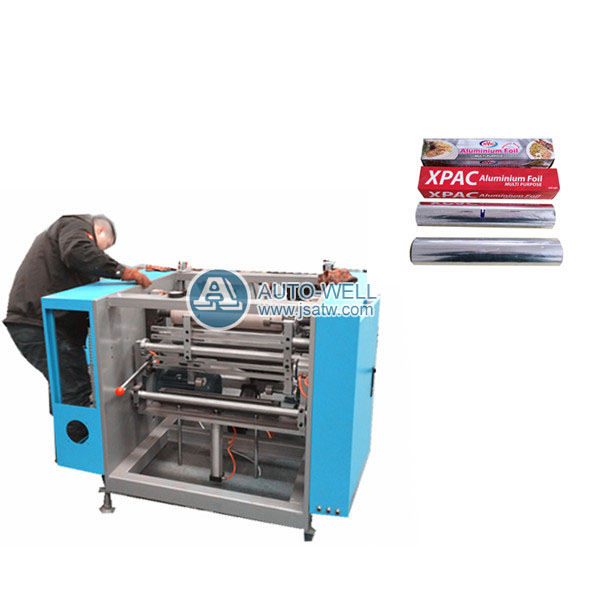

Semi-automatic aluminium foil rewinder 3

aluminium foil

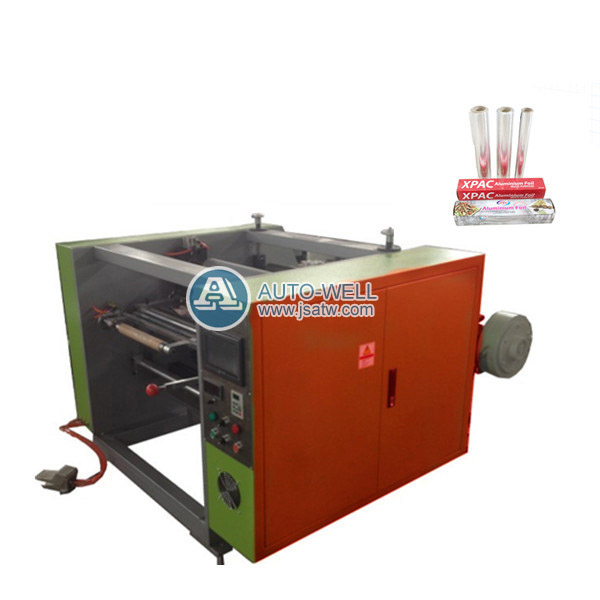

Semi-automatic aluminium foil rewinder 5
